Battery Terminals(A12)
★ 12-Way connectors: 6 x hole-holders and 6 x threaded studs.

★ Vgate battery terminals are 6061 aluminum machined parts, in addition to high precision, high toughness and good corrosion resistance.

★ Battery Voltage: 48V 36V 24V 12V 6V

★ Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.

★ Tapered Post Type: SAE, DIN, EN (But JIS Pencil Post Not Included).
(0/5)
Quantity
Pieces
100 Units in Stock
$ 30.49
$ 44.99
Buy Now
Add to Cart
Free Shipping to Most States
30-Day Return & Refund Service
Please download the latest user manual.
Product Details

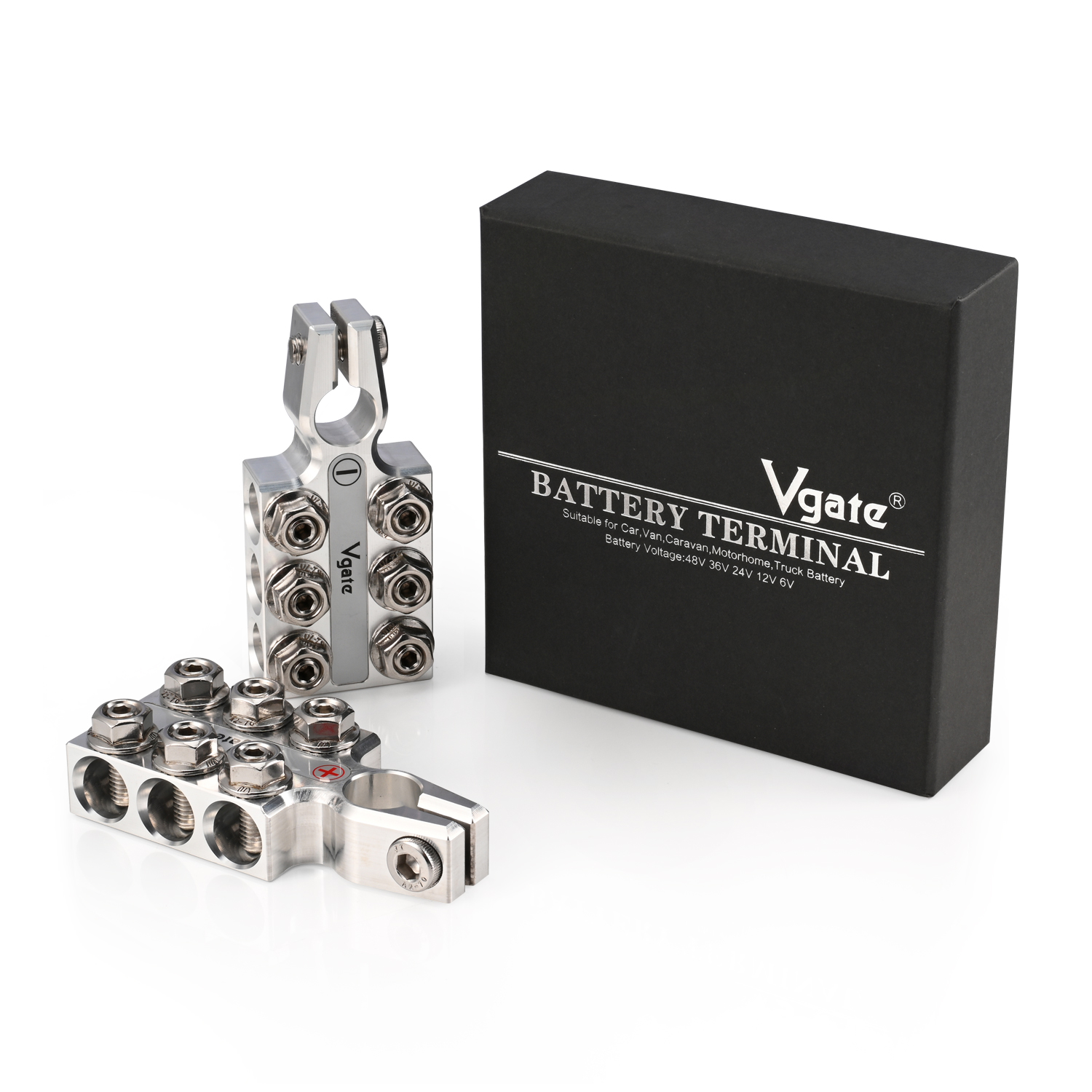

Vgate A12 Battery Terminal 8AWG up to 4/0(XL) AWG Gauge for SAE/DIN/EN Tapered Top Post



Vgate Lead Acid Battery Terminal Clamps, 8AWG up to 4/0(XL) AWG Gauge, 12-Way Connectors for SAE/DIN/EN Tapered Top Post

             Vgate battery terminals are machined from 6061 aluminum.

      In addition to high precision, it also has high toughness and good corrosion resistance.


 Application for the Following Batteries:


1. Battery Type: Lead Acid Batteries (AGMGELWETMF and CA/CA); or Lithium batteries (Need to purchase the Stud to Post Adapter additionally.)


2. Tapered Post Type: SAEDINEN (But JIS Pencil Post Not Included). (NOTE: For lithium batteries, you will need to purchase the Stud to Post Adapter additionally.)


3. Battery Voltage: 48V, 36V, 24V, 12V, 6V


4. Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.


12-Way Connectors: 6 x Hole-Holders and 6 x Threaded Studs.

Vgate battery terminal 6-hole holders exactly to hold 00 (2/0) AWG welding cable, and also can hold other gauge cables: 1/0AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG and so on,

 but the size of holders are bigger than the above-mentioned gauges.

6 x threaded studs to connect ring terminals (cable lugs); the size of studs are 8mm to be suitable for the following eyelet of ring terminals:

1/2”, 3/8” and 5/16”; or 12mm, 10mm, 8mm.


The above-mentioned ring terminals (cable lugs) to crimp large-scale gauge cables as following:

4/0(XL) AWG, 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG and so on.


NOTE:

This product does not contain the cable lugs shown in the picture.


Vgate A12 V  Battery Terminal 8AWG up to 4/0(XL) AWG Gauge for SAE/DIN/EN Tapered Top Post

Can Not Tighten the Terminal Firmly?

Note:

1. Please make sure to place the product at the bottom of the positive and negative poles of the battery.

2. If you can't tighten it at one time, you must first loosen or unscrew the hexagon socket screw, put the product to the bottom and tighten it again, so that it will not loosen.


Application for SAE/ EN/ DIN:

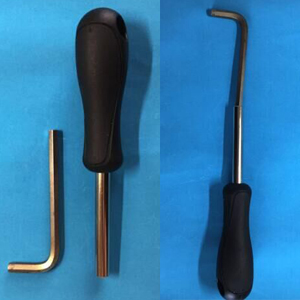

1.It's very important to lengthen the handle of Allen key to long enough as the attached picture, because short handle allen key cannot work.

2.Our Vgate terminal clamp is very strong to ensure safety.

3. Note: This product does not include this wrench.


Package Includes:

   1 X Positive Battery Terminal Clamp (19.5 ± 0.4mm)

   1 X Negative Battery Terminal Clamp (17.9 ± 0.4mm)


This product is only used for SAE/DIN/EN battery pile heads. The steps below should be followed to ensure a smooth installation:


 If the battery pile head is not worn out, please operate as follows:

1. The battery terminal clamp can be placed directly at the battery pile head, and the screw of the pile head can be tightened, without using the thin gasket attached with the product; Do not shake the product during screwing (In addition, please note that the terminal clamp must be placed at the bottom of the pile head, otherwise it cannot be tightened down.)


2. If it cannot be tightened down:

a) Completely loosen the screw of the pile head, let the clamp relax naturally, and then operate the above steps again;

b) If it still can not be tightened down according to the above steps, please lengthen the handle length of the hexagon wrench, and then operate according to the above steps. In order to ensure safety, the chuck of the product is pretty strong, and it is not easy to tighten down if the strength is not enough.


If the battery pile head is worn out, please operate as follows:

1. Insert the thin gasket attached with the product: put the thin gasket close to the battery pile head, and then place the chuck; the thin gasket can be placed around the pile head or stacked according to the actual needs; In addition,     please increase or decrease the gasket according to the wear degree of the pile head (Please be noted the gasket is ultra-thin, do not hurt hands.)

2. Then follow Step 2 above.
