vLinker FS Bluetooth
• Work for iOS /Android /Windows
• Apple MFI certified device
• Supports HS-CAN/MS-CAN protocol
• Supports automatic sleep and wake up
• Fastest Bluetooth OBD-II adapter (baud rate: 3Mbps)
(5/5)
Quantity
Pieces
100 Units in Stock
$ 55.99
$ 139.99
Buy Now
Add to Cart
Free Shipping to Most States
30-Day Return & Refund Service
Please download the latest user manual.
Product Details

IMPORTANT NOTE:

Currently vLinker FS (Bluetooth) may be limited to use third party software in iOS system. We are in contact with these APP companies, once they add our product to their compatibility list, the product will be able to support the corresponding APP.There are many more applications waiting to be explored. Work with more third party applications and software.


The vLinker FS Bluetooth OBD-II adapter provides access to HS-CAN MS-CAN networks in addition to all legislated OBD-II protocols.Unlike other OBD adapters, vLinker FS won't  drain your battery if you leave it plugged in.

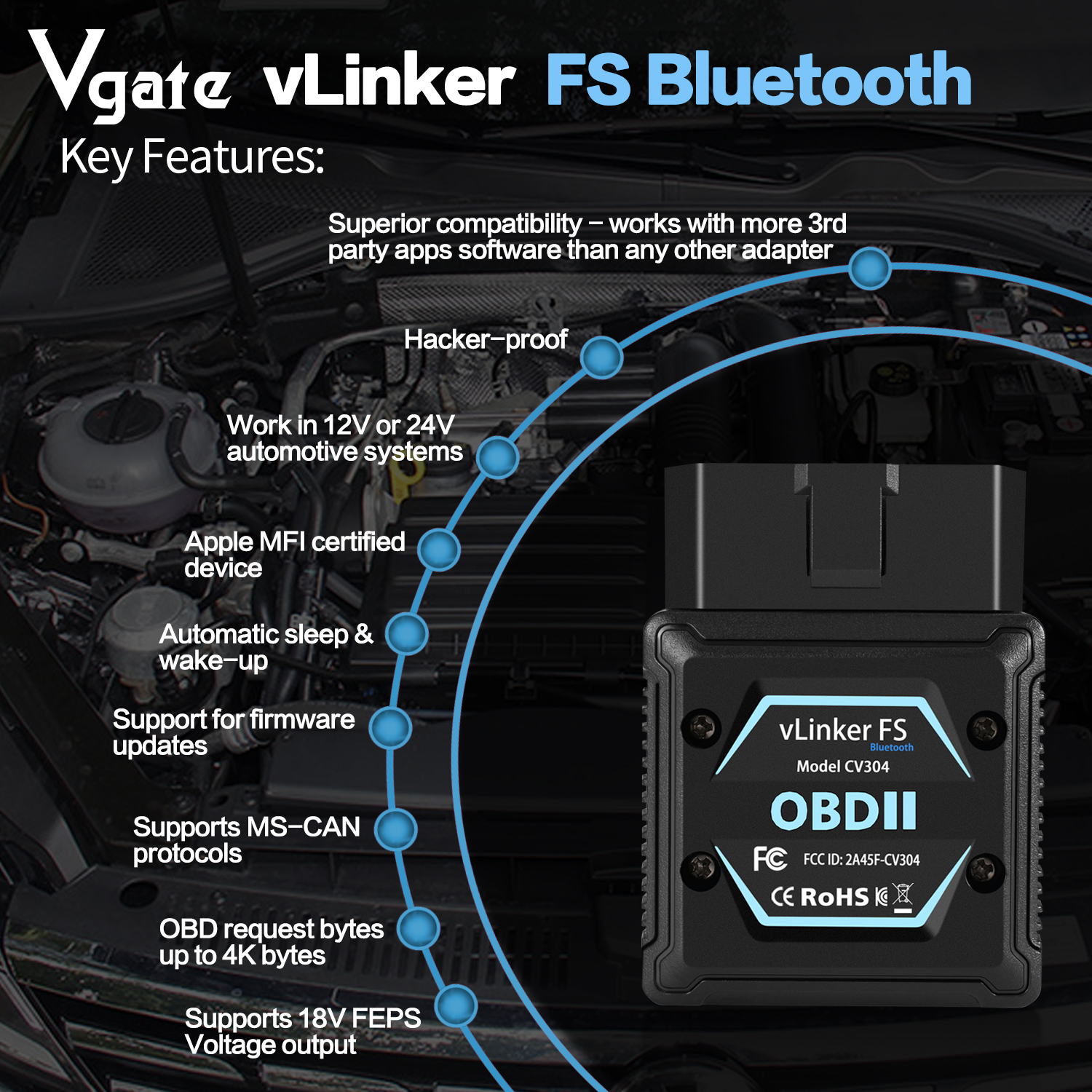

Key features:

1.Hacker-proof

2.Apple MFI certified device

3.Automatic sleep & wake-up

4.Support for firmware updates

5.Supports HS-CAN / MS-CAN protocols

6.OBD request bytes up to 4K bytes

7.Supports 18V FEPS Voltage output

8.Work in 12V or 24V automotive systems

9.BatterySaver technology - low power mode

10.World’s fastest Bluetooth OBD-II adapter (baudrate: 3Mbps)

11.Superior compatibility - works with more 3rd party apps software than any other adapter

12. And so on...


vLinker FS Bluetooth OBD-II adapter provides access to the  HS-CAN MS-CAN network, in addition to all legal OBD-II protocols


Download & Install APP:

At present, the vLinker FS(Bluetooth) version supports all functions of FORScan, such as reading fault code, clearing fault code, reading data stream, reset module, brush hiding, ECU programming.For third-party applications (free and paid versions), Customers choose according to their own needs.

 Note for iOS users:

Currently vLinker FS (Bluetooth) uses the following third party software in iOS. We are in contact with other app companies and once they add our product to their compatibility list, the product will be able to support the appropriate app. there are more apps waiting to be explored. Working with more 3rd party apps and software.

1. FORScan Lite

2. FORScan Viewer

3. Car Scanner

4. Shift OBD complete

5. Shift OBD

6. Link ON

7. tes•LAX - CAN Bus Explorer

8.OBD Auto Doctor

9.OBD JScan

10. And so on...

  Note:  Please check it first with vLinker team if you cannot sure the APP compatibility




Why should we choose "Vgate vLinker FS Bluetooth"?

✔  Apple MFI certified device,trustworthy and reliable products

✔  vLinker FS is a Bluetooth product that turns your iPhone, Android device or Windows PC into a professional-grade diagnostic scan tool

✔  vLinker FS Bluetooth OBD-II adapter provides access to the  HS-CAN / MS-CAN network, in addition to all legal OBD-II protocols

✔  OBD request byte up to 4095 bytes, can meet the needs of some special long frame communication

  Operating Current is 28 mA, automatic sleep in idle state, sleep current is as low as 3mA

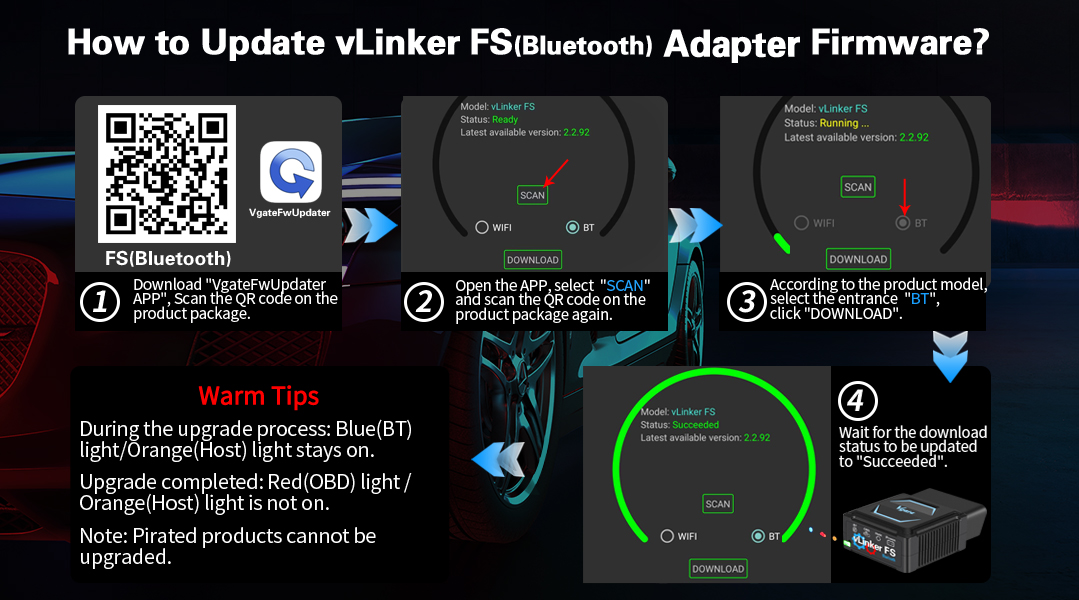

✔  Support online firmware updates and over-voltage, over-current, over-temperature and battery drain protection

     Note: Pirated products cannot be upgraded
