Purchase Notes：

1.Our products support popular software such as:BimmerCode/Torque/Forscan/JScan/Auto Doctor/OBD Fusion etc.,We only sell adapters to be compatible with these software, but some of the functions of the software or the software itself are not free, you need to pay additional fees to the software company

2.If your mobile phone is IOS, when you use BT4.0 Ver., please connect to BT directly in the software,Don't connect to BT in phone settings.If you are using MC BT version on Android, you need to press the switch first, and then search for BT：vlinker MC-Android

Vgate vLinker MC+ Bluetooth OBD2 Diagnostic Scanner - Support Single Wire CAN(GMLAN) & Medium Speed CAN(MS-CAN)

100% Original Vgate vLinker BT3.0/4.0/WIFI:

compatible with 99%+ world car models

1.Data buffer up to 2K bytes, UART baud rate increased to 500Kbps

2.Support Almost All ELM327/ELM329 Adapter Software

3.Automatic sleep and start to reduce power consumptione

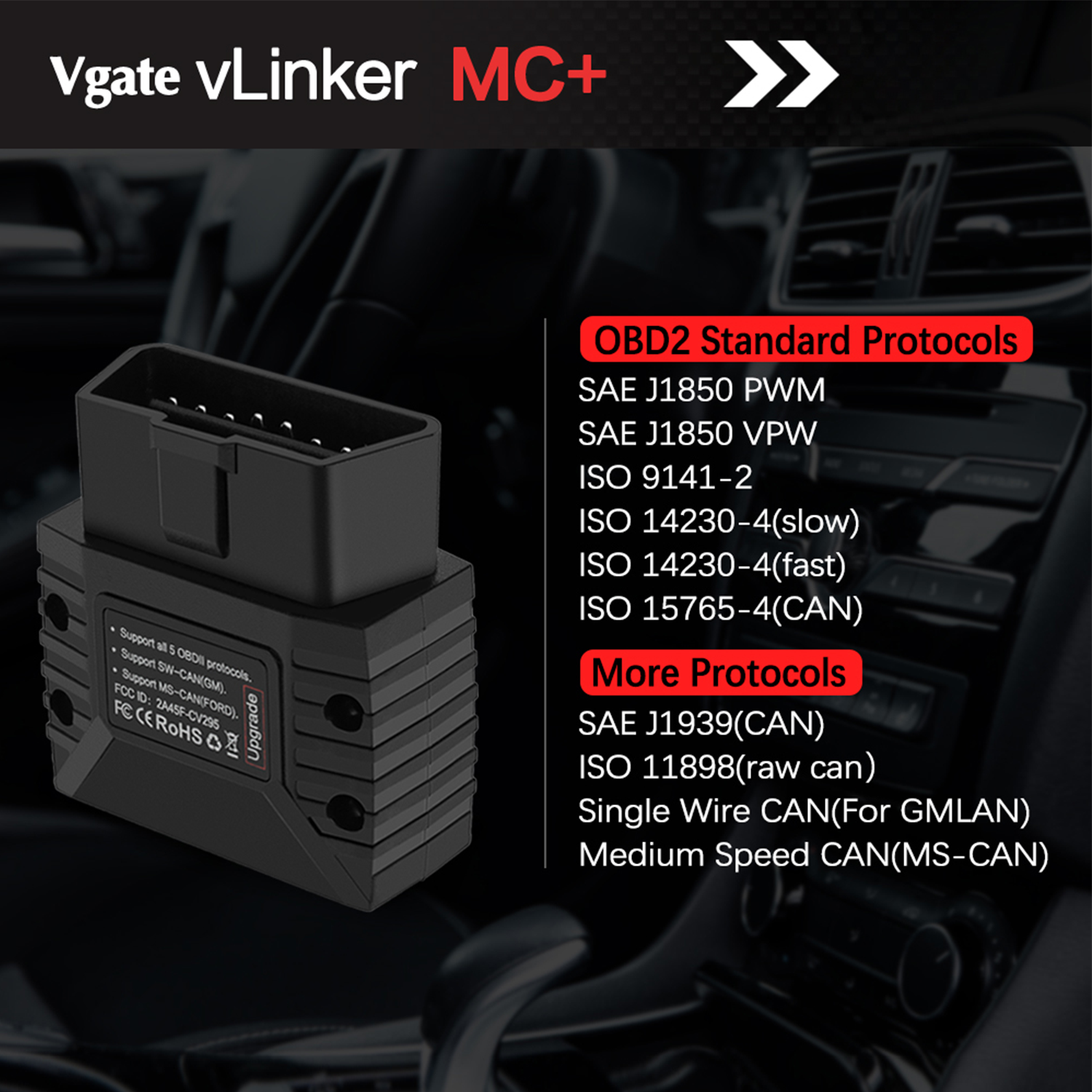

4.OBD2 Standard Protocols+More protocols

5.Support user-defined commands

6.Request bytes up to 1024 bytes

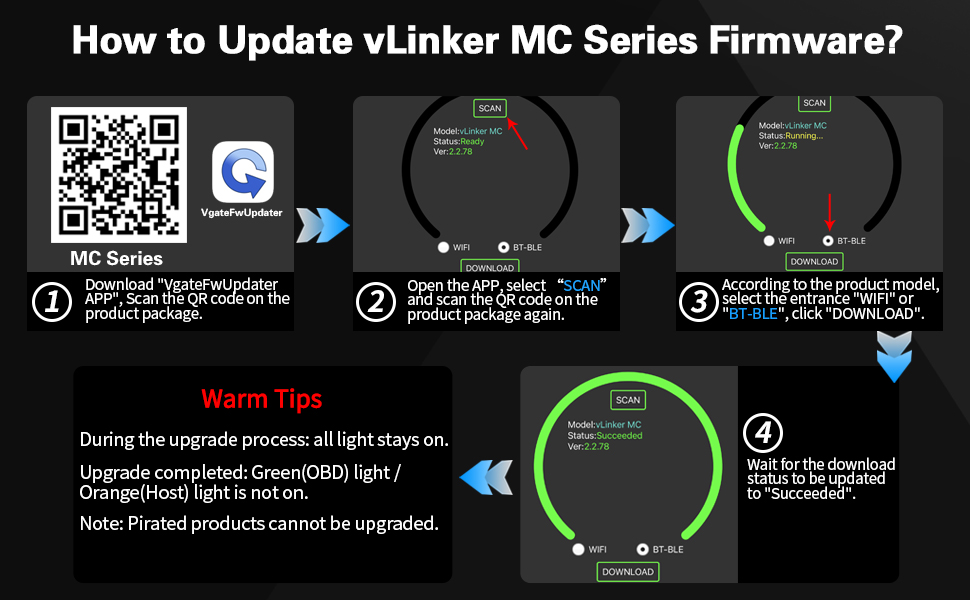

7.Support Firmware Update

8.Support user-defined APP

9.Support GMLAN and HS/MS-CAN (for Ford/GM)

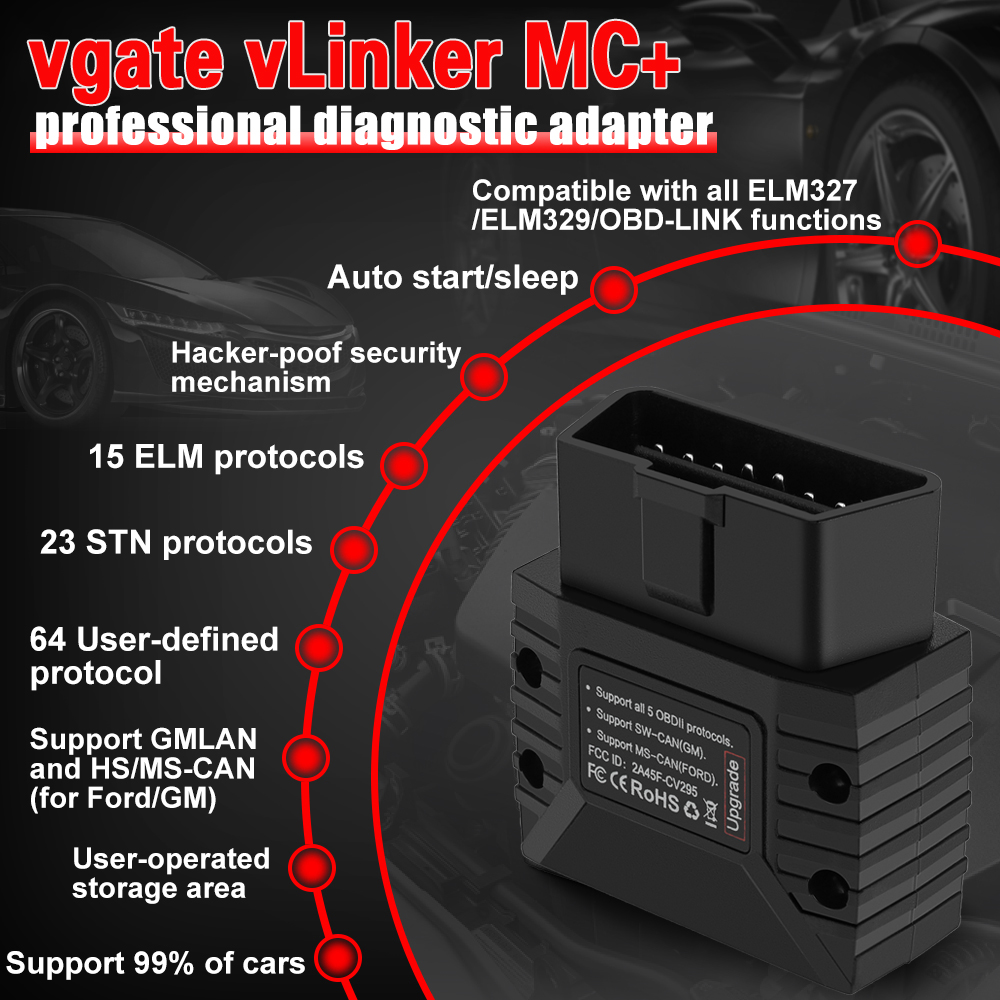

10.15 ELM protocols/23 STN protocols/64 User-defined protocol

SW-CAN & MS-CAN

Support：

   Engineered to accelerate performance over the Bluetooth link, Vgate vLinker MC+ is up to four times faster than befor

  The Vgate vLinker MC+ Bluetooth OBD-II adapter provides access to SW-CAN & MS-CAN networks in addition to all legislated OBD-II protocols.

Special function:

    1.Fully automatic identification of vehicle logs, fast reading of vehicle information

    2.Fully automatic standby/start, no manual switch button required

Typical Applications：

      • Vehicle telematics

       • Fleet management and tracking applications

       • Usage-based insurance (UBI)

       • OBD data loggers

       • Automotive diagnostic scan tools and code readers

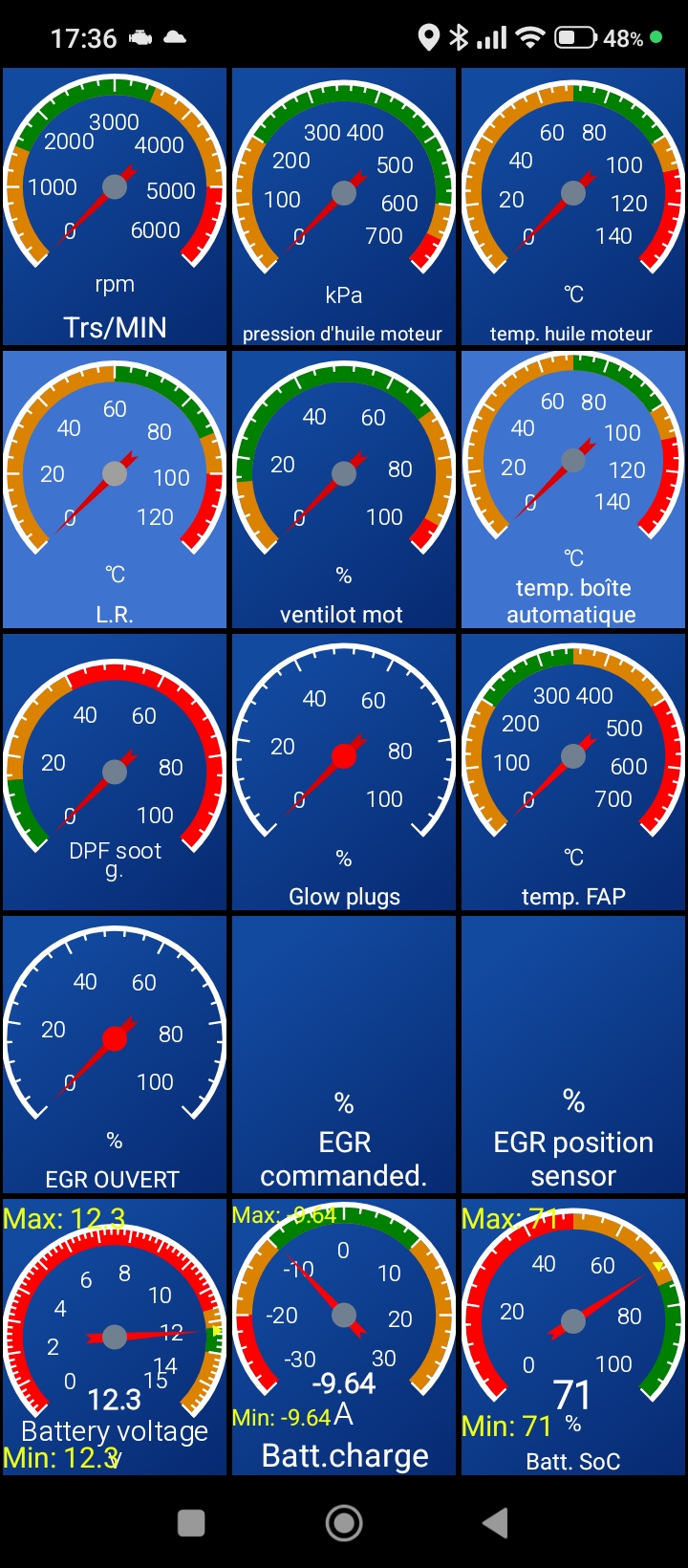

       • Digital dashboards

Vgate vLinker MC+ Bluetooth Operation Steps - Reference for Android users

Android System Operation Steps - Vgate vLinker MC+

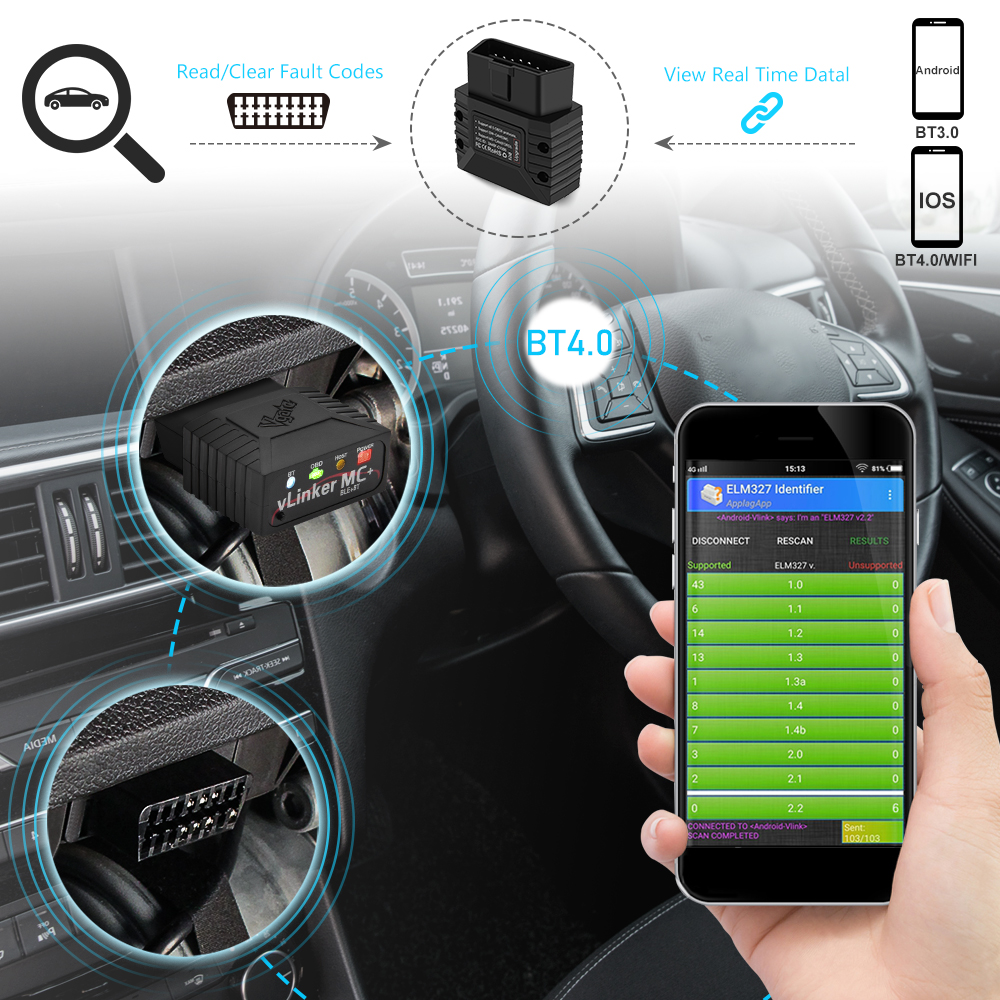

1. Insert the product into the OBD interface of the car.

2. Turn ignition to Key On Engine Off Position

3. Turn on Bluetooth on the phone.

4. After pressing the Black Button on the product, the device name can be found on the phone. (Important Operation)

5. NOTE: Search for the device name "vLinker MC" or "vLinker MC-Android"and click Pair. (For Android system) Attention!! Do not pair "vLinker MC+" or "vLinker MC-IOS"

6. Enter the pairing code: 1234 . If the pairing is successful, you can open the APP to set up the connection.

 iOS System Operation Steps - Vgate vLinker MC+

1. Plug the product into the OBD2 interface of the car.

2. Turn ignition to Key On Engine Off Position

3. Turn on Bluetooth on the iOS phone.

4. No need to configure Bluetooth device name in the iOS phone. Just enable Bluetooth button on the iOS device and continue to the OBD app Setting.

* NOTE: In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.

Why should we choose Vgate vLinker MC+ Bluetooth?

✔ Vgate vLinker MC series is the upgraded version of Vgate iCar Pro, specifically for coding APP that requires large amount of data transmission.

✔ Supports SW-CAN & MS-CAN protocols - can access these proprietary GM & Ford networks in addition to the 5 standard OBD-II protocols.

✔ Vgate vLinker MC+ Bluetooth 0BD2 turns your iOS, Android or Windows mobile device, tablet, laptop, or PC into a sophisticated diagnostics tool and performance monitor.

✔ OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.

✔ USART data buffer up to 2K bytes, baud rate increased to 500Kbps. Even faster, more reliable, and more feature-rich than its predecessors.

✔ Fully compatible with ELM's AT command set (ELM327, ELM329) and STN's ST command set.

✔ Read & clear check engine light - Check diagnostic codes yourself and make informed repair decisions.

✔ Support online firmware updates and over-voltage, over-current, over-temperature and battery drain protection.

1 x Vgate vLinker  MC+ BT4.0

1 x User manual
